Lifting capacity: 1100 kg and 2200 kg pressure :6 bar

MUTIAN provides an innovative system solution, the package handling pneumatic elevator, which can meet special requirements.

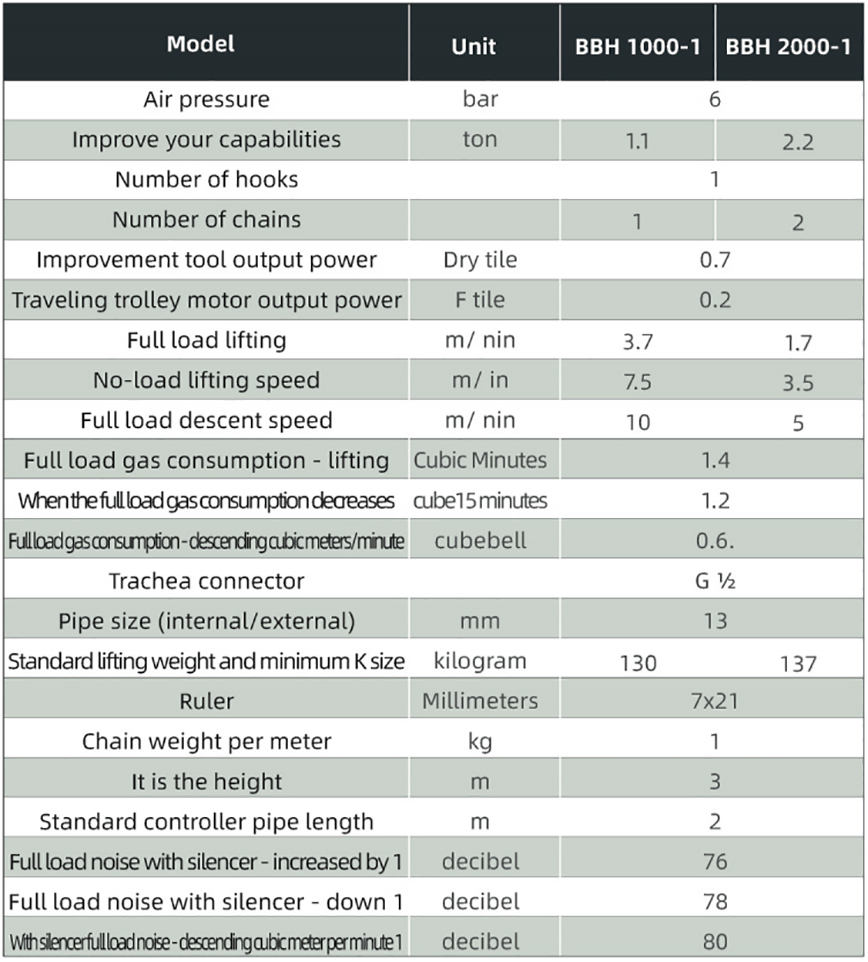

The JDN package handling pneumatic hoist has a lifting capacity of 1100kg and 2200g, with a pressure of 6 bar.

• single hook or double hook design

Walk the beam with a single hook, and the distance between the hook and the storage chain box is large, which can ensure that there is no risk of collision between the hook and the storage chain box. Pneumatic hoists with double hooks may be suitable for more complex multi-point beams or single-bar beams that require two means of hanging.

• standard features

1. The low clearance design makes it very suitable for package handling and a variety of bulk cargo loading operations

2. Compact structure and avant-garde design

3. double hook design can be used as a parallel hoist

4. The use of recognized JDN components makes the product more economical and reliable

5. No additional motor oil is required

6. less operating parts, low maintenance and consumption

7. Standard equipment includes storage chain boxes

8. can adjust a variety of 1-shape, the distance between the hook can be adjusted
